Shimano cues fc-u6000-2 crankset

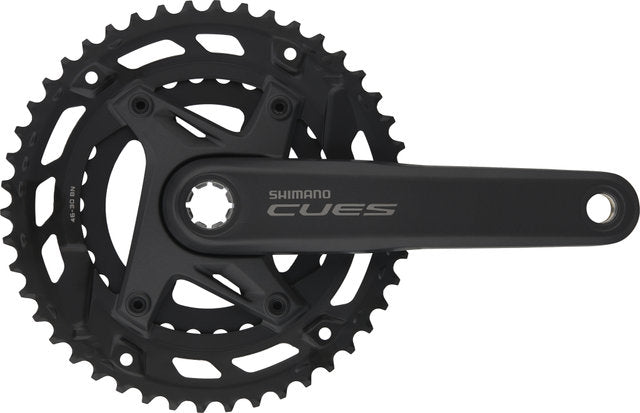

Product Description Shimano CUES FC-U6000-2 - 2-piece crank with two chainrings for city, touring and MTB The CUES crankset FC-U6000-2 was designed by Shimano for Linkglide drivetrains in sporty city, touring and mountain bike use. It is suitable for 2x9-speed, 2x10-speed and, depending on the version, also for 2x11-speed derailleurs and produces a chainline of 48.8 mm. Therefore, frame over locknut dimensions of 135 mm and 142 mm are compatible. The Q-factor is 180 mm. The 2-piece design of the crank provides an optimal stiffness-to-weight ratio and improves power transfer. The gradations are chosen so that it is possible to pedal harmoniously and smoothly on different types of terrain. The crank arms and spider are made of aluminium; the chainrings are made of steel. Specifications:Application:City, Touring, All MountainCompatibility:2x9-speed, 2x10-speed, 2x11-speed*Chainring Mount:96 mm bolt circle diameter, 4-arm asymmetric (22-36 T), 110 mm bolt circle diameter, 4-arm asymmetric (30-46 T) * 30-46 T is not 11-speed compatible Technical Information:Series:CUES U6000Crank Arm Material:aluminiumChainring Material:steelAxle Material:steelGradation:22-36, 30-46Crank Arm Length:170.0 mm, 175.0 mmChainline:48.8 mmQ-Factor:180 mmAxle Diameter:24 mmCompatible BSA Shell Width:68 mm / 73 mmRecommended Bottom Bracket:BB-MT501 (BSA) or BB-MT500-PA press fit (not included)Recommended Chain:Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG601-11)Compatibility:Rear Over Locknut Dimension: quick release: 135 mmthru-axle: 142 mmBottom Bracket:BB-MT801, BB-MT501, BB-UR400, SM-BB94-41A, BB-MT800-PA, BB-MT500-PAShifter:SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-LFront Derailleur: 2x11-speed (22-36 T): FD-U60002x10-speed (22-36 T): FD-U6000, FD-U40002x10-speed (30-46 T): FC-U8010, FD-U60102x9-speed (22-36 T): FD-U40002x9-speed (30-46 T): FD-U4010Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Chain Case:30-46 T compatibleFeatures:2-piece crank with two chainrings for sporty city, touring and MTB useexclusively for Shimano Linkglide drivetrains (9-speed, 10-speed, 22-36 also 11-speed)reliable, smooth performance on various terrainwide ratio range for harmonious, comfortable pedallingoptimum stiffness with low weightefficient transfer of pedal powerlacquered crank arms, spider and chainringsstainless steel chainring boltsTechnology:2-Piece Crankset With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets. Manufacturer Numbers:170.0 mm 22-36:EFCU60002CX62170.0 mm 30-46:EFCU60002CX60X175.0 mm 22-36:EFCU60002EX62175.0 mm 30-46:EFCU60002EX60XContents:1 x (22-36 or 30-46 teeth)1 x Shimano crank bolts Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
