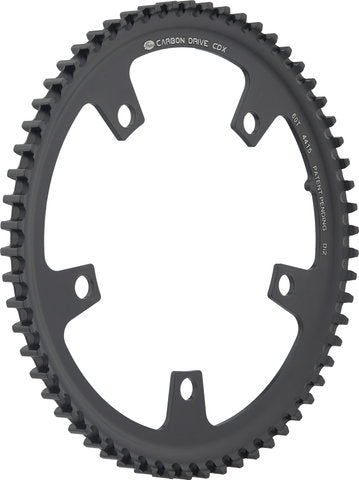

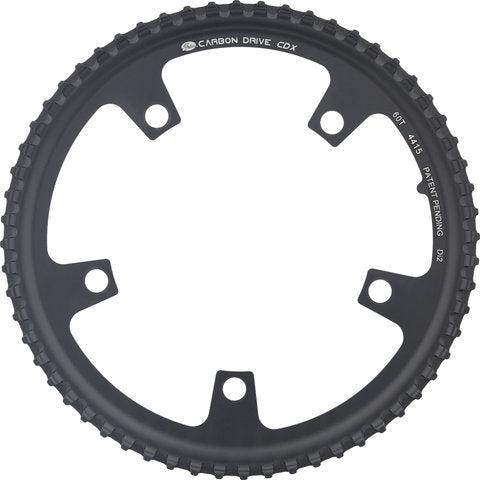

Gates cdx tandem front sprocket

Product Description This Gates CDX sprocket is designed for use on tandem bikes and features a 5-arm bolt circle diameter of 130 mm. It is made of 6061 aluminium. Specifications:Application:City & TouringMount:130 mm bolt circle diameter, 5-armTeeth:66 t, 69 t, 74 tTechnical Information:Width of the teeth:11 mmTooth division:8 mmMounting web thickness:3.1 mmOffset:3.1 mm (assembly surface), 1.55 mm (centre line)Arm width:21 mmInner Diameter:114.5 mmMaterial:AluminiumCompatibility:only compatible with Gates CDX Tandem belt (due to 8 mm instead of 11 mm tooth pitch)Features:CDX level: high-end version for high loads and best performancesuitable for mud, sand, snow and ice as well as all roadsmiddle guide groove (CenterTrack)high mileageperfectly suited for tandems: quieter and smoother ride than with conventional chain tandem stoker drivesTechnology:Gates Carbon Drive System The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, E-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past. Clean: No lubricant means no accumulation of grease and dirt. Smooth and silent operation: no metal-to-metal contact of the chains. Light: The whole system weighs less than a standard bicycle chain. No elongation: Belt does not need to be re-tensioned or replaced. Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants. Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt. Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework. Models:66 tooth: Outer Diameter:166.3 mmManufacturer Number:CT08665AA 69 tooth: Outer Diameter:174.2 mmManufacturer Number:CT08695AA 74 tooth: Outer Diameter:186.8 mmManufacturer Number:CT08745AAContents:1 x Gates CDX tandem front belt drive sprocket1 x spacer kit Manufacturer: Universal Transmissions GmbH Walkmühlenstraße 195 99974 Mühlhausen Germany shop@carbondrive.net
